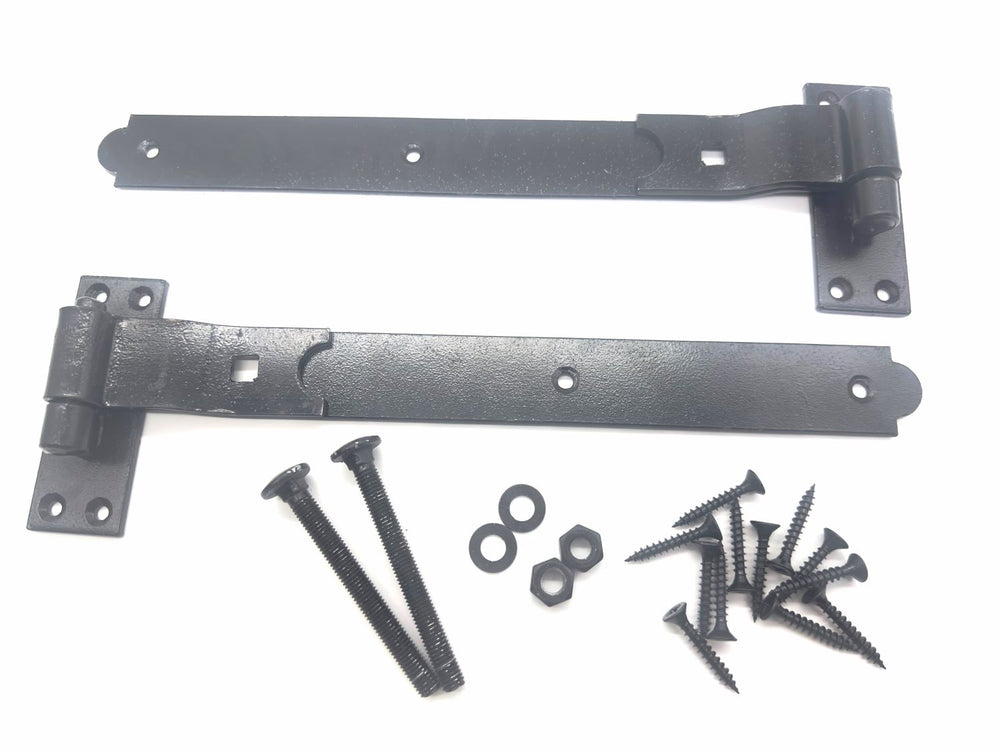

Band & Hook Hinge Pair - Cranked Black
(Includes Fixings)
Our high quality cranked pattern hook and band hinges in a premium black finish are the ideal hinge for fixing your gate and doors flush with your post or frame.
A great safety feature that can be applied depending on the weight distribution of your door or gate is that you have the option to mount one of the pins upside down, which will prevent unwanted removal.
Do not hesitate to purchase these hinges if you require them for high use, heavy weight gates, stables, doors and garages. A truly premium finish for domestic gardens or agricultural applications with the peace of mind that these hinges will perform as good as they look for years to come.
Fixing Kit Includes;
- Carriage bolts
- Hex full nuts
- Form A washers
- Countersunk screws
Please Note We Advise: Doors and gates over 2130mm or 7ft in height should be fitted with a third hinge to prevent warping along the length.
See our full collection of hinges available in different lengths, materials and load weights. Click Here To See
Hook and Band Specifications Table
Band Length | To Suit Gate Max Width | Band Thickness | Band Width | Hook Plate Size LxW |
10" / 250mm | 500 - 750mm | 4.8mm | 40mm | 115x40mm |
12" / 300mm | 600 - 900mm | 4.8mm | 40mm | 115x40mm |
14" / 350mm | 700 - 1050mm | 4.8mm | 40mm | 115x40mm |
16" / 400mm | 800 - 1200mm | 4.8mm | 40mm | 115x40mm |
18" / 450mm | 900 - 1350mm | 4.8mm | 50mm | 160x50mm |
20" / 500mm | 1000 - 1500mm | 4.8mm | 50mm | 160x50mm |
24" / 600mm | 1200 - 1800mm | 5.4mm | 50mm | 160x50mm |
30"/ 750mm | 1500 - 2250mm | 5.4mm | 50mm | 200x75mm |
36" / 900mm | 1800 - 2700mm | 5.4mm | 50mm | 200x75mm |
