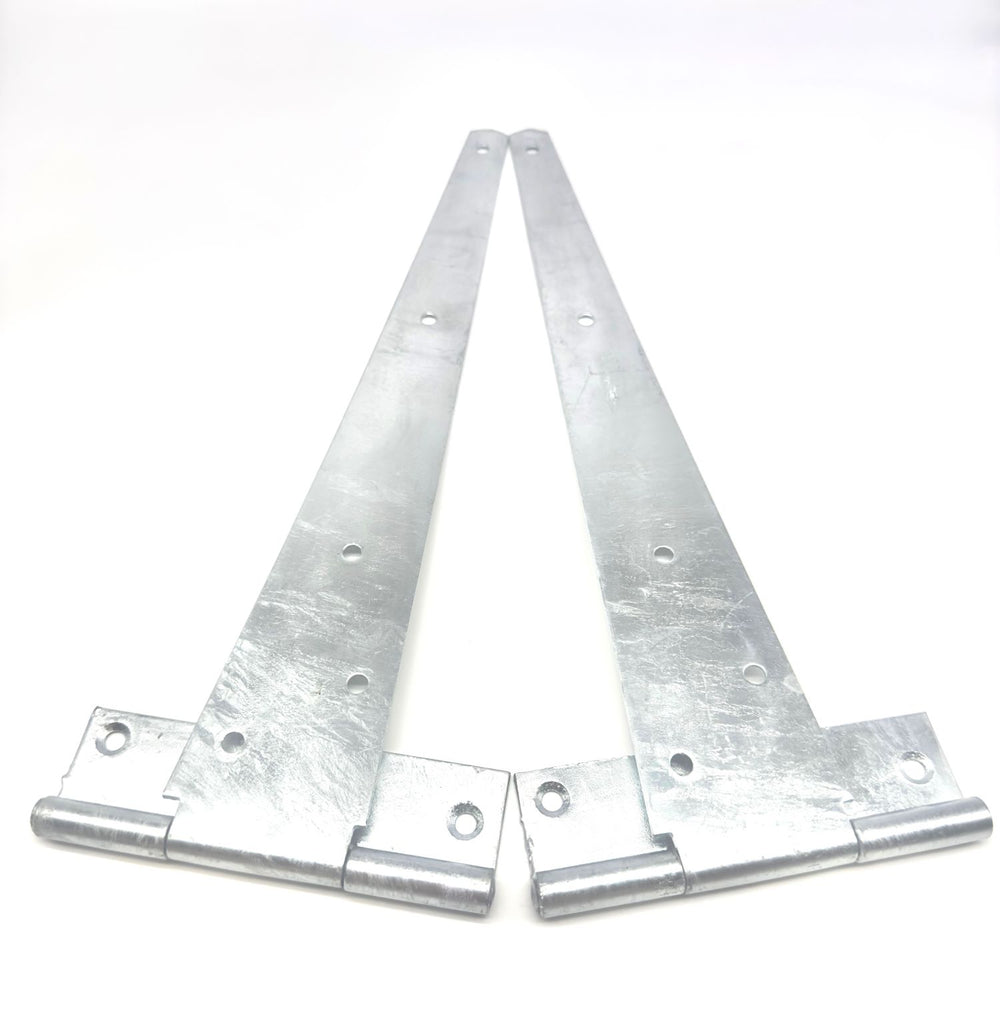

Strong Galvanized Tee Hinges
Introducing our premium strength galv gate hinges, the perfect hardware solution for your doors, gates, cabinets, and more. Ideal solution for either internal or external, these hinges are a durable and reliable hardware.
Don't hesitate to use these gate hinges on your garden gates for a premium finish for any garden. Made for long lasting durability with strong load weights and built to withstand high traffic use.
Smaller sized hinges are ideal for lightweight low use gates, sheds and animal hutches.
Please Note We Advise: Doors and gates over 2.1m or 7ft in height should be fitted with a third hinge to prevent warping along the length.
Fixings Option: Includes adequate amount of woodscrews to secure the hinges in all screw holes, colour matched to your hinge.
See our full collection of hinges available in different lengths, materials and load weights.
Gate Hinge Specifications
10" |
12" |
14" |
16" |
18" |
24" |
|
Max Gate Weight |
40kg | 40kg | 60kg | 60kg | 80kg | 80kg |
Length |
250mm | 300mm | 350mm | 400mm | 450mm | 600mm |
Thickness |
2.3mm | 2.3mm | 2.3mm | 2.8mm | 2.8mm | 2.8mm |
Finish |
Hot Dipped Galvanised |
Hot Dipped Galvanised | Hot Dipped Galvanised | Hot Dipped Galvanised | Hot Dipped Galvanised | Hot Dipped Galvanised |
Material |
Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
No. of Screw Holes |
14 | 18 | 18 | 18 | 18 | 20 |
